Extracting Pure Functionality from SQL Queries
In my last Oracle User Group presentation, Database API Viewed As A Mathematical Function: Insights into Testing, I discussed how the concept of the pure function can be extremely useful in the context of automated testing of database APIs.
In this article I show how the concept can also be useful in testing, and writing, SQL queries regardless of whether or not automated testing is in use. The idea is that queries often contain complex logic involving CASE, Nvl and other logical constructs, as well as retrieval of database data. If we could somehow separate out the pure logical part from the impure database accesses, we may be able to do more effective testing, since pure functions are inherently easier to test than impure ones. We will show this by means of a simple example against the Oracle HR demo schema.
Suppose we want to calculate an employee bonus using the following logic:
- Use a 10% multiplier applied to one of two salaries…
- …for department managers, use the departmental average salary; for others, use their own salary
- For employees who have been previously employed, i.e. who have a job history record, add a further 10%
- For employees whose job is ‘IT_PROG’, add a (well deserved 🙂) further 50%
Here is a query to calculate this:
WITH depsals AS (
SELECT dep.department_id, dep.manager_id, Avg(emp.salary) avgsal
FROM departments dep
JOIN employees emp ON emp.department_id = dep.department_id
GROUP BY Dep.department_id, dep.manager_id
)
SELECT emp.employee_id, emp.salary, dsl.avgsal,
Round(Nvl(dsl.avgsal, emp.salary) * 0.1 *
Nvl2(jhs.employee_id, 1.1, 1) *
CASE job.job_id WHEN 'IT_PROG' THEN 1.5 ELSE 1 END) bonus
FROM employees emp
JOIN jobs job
ON emp.job_id = job.job_id
LEFT JOIN depsals dsl
ON dsl.manager_id = emp.employee_id
LEFT JOIN (SELECT employee_id FROM job_history GROUP BY employee_id) jhs
ON jhs.employee_id = emp.employee_id
ORDER BY 1
with results:
EMPLOYEE_ID SALARY AVGSAL BONUS
----------- ---------- ---------- ----------
100 24000 19333.3333 1933
101 17000 1870
102 17000 1870
103 9000 5760 864
104 6000 900
105 4800 720
106 4800 720
107 4200 630
108 12008 8601.33333 860
109 9000 900
110 8200 820
111 7700 770
112 7800 780
113 6900 690
114 11000 4150 457
115 3100 310
116 2900 290
117 2800 280
118 2600 260
119 2500 250
120 8000 800
121 8200 3475.55556 348
122 7900 869
123 6500 650
124 5800 580
125 3200 320
126 2700 270
127 2400 240
128 2200 220
129 3300 330
130 2800 280
131 2500 250
132 2100 210
133 3300 330
134 2900 290
135 2400 240
136 2200 220
137 3600 360
138 3200 320
139 2700 270
140 2500 250
141 3500 350
142 3100 310
143 2600 260
144 2500 250
145 14000 8955.88235 896
146 13500 1350
147 12000 1200
148 11000 1100
149 10500 1050
150 10000 1000
151 9500 950
152 9000 900
153 8000 800
154 7500 750
155 7000 700
156 10000 1000
157 9500 950
158 9000 900
159 8000 800
160 7500 750
161 7000 700
162 10500 1050
163 9500 950
164 7200 720
165 6800 680
166 6400 640
167 6200 620
168 11500 1150
169 10000 1000
170 9600 960
171 7400 740
172 7300 730
173 6100 610
174 11000 1100
175 8800 880
176 8600 946
177 8400 840
178 7000 700
179 6200 620
180 3200 320
181 3100 310
182 2500 250
183 2800 280
184 4200 420
185 4100 410
186 3400 340
187 3000 300
188 3800 380
189 3600 360
190 2900 290
191 2500 250
192 4000 400
193 3900 390
194 3200 320
195 2800 280
196 3100 310
197 3000 300
198 2600 260
199 2600 260
200 4400 4400 484
201 13000 9500 1045
202 6000 600
203 6500 6500 650
204 10000 10000 1000
205 12008 10154 1015
206 8300 830
107 rows selected.
We see the bonus calculation in the select list with fields embedded from tables and a subquery. Setting up test data in multiple tables, and filtering out database noise can be a difficult task, so it would be nice if we could bypass that to test the calculation logic independently. If we are on version 12.1 or higher we can facilitate this by making the calculation into a WITH function, like this:
WITH FUNCTION calc_bonus(p_jhs_emp_id NUMBER, p_job_id VARCHAR2, p_salary NUMBER, p_avgsal NUMBER) RETURN NUMBER IS
BEGIN
RETURN Round(0.1 *
Nvl(p_avgsal, p_salary) *
CASE WHEN p_jhs_emp_id IS NULL THEN 1 ELSE 1.1 END *
CASE p_job_id WHEN 'IT_PROG' THEN 1.5 ELSE 1 END);
END;
depsals AS (
SELECT dep.department_id, dep.manager_id, Avg(emp.salary) avgsal
FROM departments dep
JOIN employees emp ON emp.department_id = dep.department_id
GROUP BY Dep.department_id, dep.manager_id
)
SELECT emp.employee_id, emp.salary, dsl.avgsal,
calc_bonus(jhs.employee_id, job.job_id, emp.salary, dsl.avgsal) bonus
FROM employees emp
JOIN jobs job
ON emp.job_id = job.job_id
LEFT JOIN depsals dsl
ON dsl.manager_id = emp.employee_id
LEFT JOIN (SELECT employee_id FROM job_history GROUP BY employee_id) jhs
ON jhs.employee_id = emp.employee_id
ORDER BY 1
Now the declared function, which is ‘pure’, separates out the calculation logic from the impure parts of the query that reference database fields. We can now test this function by replacing the rest of the query with a test data generator designed to cover all scenarios.

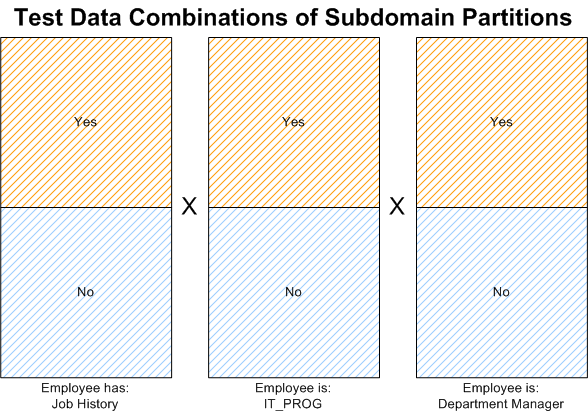

In the presentation referenced above I discussed how to assess test coverage properly, in terms of behavioural, or scenario, coverage, rather than the popular but spurious ‘code coverage’ metrics. I explained the value of thinking in terms of domain and subdomain partitioning to maximise true test coverage. If the subdomains are orthogonal (or independent) we can test behaviour across their partitions in parallel. What about the current case? We can see that we have three subdomains, each having two partitions, and in fact they are interdependent (because they multiply together an error in one factor could neutralise an error in another): that means we need 2x2x2 = 8 test records. There is no need to vary the base salary, so we will use a bind variable:
VAR SALARY NUMBER
EXEC :SALARY := 20000
The query with test data generator is then:
WITH FUNCTION calc_bonus(p_jhs_emp_id NUMBER, p_job_id VARCHAR2, p_salary NUMBER, p_avgsal NUMBER) RETURN NUMBER IS
BEGIN
RETURN Round(0.1 *
Nvl(p_avgsal, p_salary) *
CASE WHEN p_jhs_emp_id IS NULL THEN 1 ELSE 1.1 END *
CASE p_job_id WHEN 'IT_PROG' THEN 1.5 ELSE 1 END);
END;
test_data AS (
SELECT NULL jhs_emp_id, 'OTHER' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'OTHER' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'IT_PROG' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'IT_PROG' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'OTHER' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'OTHER' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'IT_PROG' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'IT_PROG' job_id, 10000 avgsal FROM DUAL
)
SELECT dat.jhs_emp_id, dat.job_id, dat.avgsal,
calc_bonus(dat.jhs_emp_id, dat.job_id, :SALARY, dat.avgsal) bonus
FROM test_data dat
ORDER BY 1, 2, 3
Test results:
JHS_EMP_ID JOB_ID AVGSAL BONUS
---------- ------- ---------- ----------
1 IT_PROG 10000 1650
1 IT_PROG 3300
1 OTHER 10000 1100
1 OTHER 2200
IT_PROG 10000 1500
IT_PROG 3000
OTHER 10000 1000
OTHER 2000
The results can be checked manually, and there is probably little value in automating this beyond scripting.
Ok, but what if we are on a database version prior to 12.1, or for some reason we don’t want to use a WITH function? In that case, we can do something similar, but not quite as cleanly because we will need to modify the code under test slightly, to reference the test data subquery:
WITH test_data AS (
SELECT NULL jhs_emp_id, 'OTHER' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'OTHER' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'IT_PROG' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'IT_PROG' job_id, NULL avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'OTHER' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'OTHER' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT NULL jhs_emp_id, 'IT_PROG' job_id, 10000 avgsal FROM DUAL UNION ALL
SELECT 1 jhs_emp_id, 'IT_PROG' job_id, 10000 avgsal FROM DUAL
)
SELECT dat.jhs_emp_id, dat.job_id, dat.avgsal,
Round(Nvl(dat.avgsal, :SALARY) * 0.1 *
Nvl2(dat.jhs_emp_id, 1.1, 1) *
CASE dat.job_id WHEN 'IT_PROG' THEN 1.5 ELSE 1 END) bonus
FROM test_data dat
ORDER BY 1, 2, 3
Conclusion
We have shown how extracting pure functionality from a query can help in making testing more rigorous and modular.
We have also shown how the WITH function feature, new in v12.1, can be used to extract pure functions from the main SQL and so enhance modularity and testability. This is a usage for the feature that is not commonly noted, the advantage usually cited being replacement of database functions to avoid context switches.
