DBAPIT 1: Web Service Saving
Part 1 in a series on: Design Patterns for Database API Testing
In the first article in the series a design pattern is presented for testing data saving procedures, such as might be used by a web service.
There is a working example of base code and test code for a procedure to save new employees in Oracle’s well-known HR demonstration schema.
Use Case for Web Service Save Procedure
- Purpose of procedure is to save a set of new records to a database table
- Surrogate primary key is generated
- Input is an array of objects with the records to be saved
- Output is an array of objects containing the new primary key plus a description
- For records failing validation, zero is returned, plus the error message, and the valid records will still be saved
Scenarios
The procedure inserts records in Oracle’s HR employees table, and we identify four test scenarios:
- Passing a single valid record
- Passing a single invalid record
- Trying to pass a record with an invalid type
- Passing multiple valid records, and one invalid record
2025 Note: In October 2021 I published Unit Testing, Scenarios and Categories: The SCAN Method, which proposes a new approach to scenario selection that tends to result in a larger number of scenarios, with clearer descriptions.
Output Groups
- Records inserted into table employees
- Records returned in output parameter array
- Timing of average call
Test Results Output
The output below is for a failing run, where the time limit is breached, and I also have deliberately entered incorrect expected values for two records, to show the difference in formatting between success and failure output group records. I like to include the output tables on completion of development in my technical design document.
TRAPIT TEST: TT_Emp_WS.tt_AIP_Save_Emps
=======================================
SCENARIO 1: 1 valid record {
============================
INPUTS
======
GROUP Employee {
================
Name Email Job Salary
---- ----- ------- ------
LN 1 EM 1 IT_PROG 1000
}
=
OUTPUTS
=======
GROUP Employee: Actual = 1, Expected = 1 {
==========================================
F? Employee id Name Email Job Salary
-- ----------- ---- ----- ------- ------
1513 LN 1 EM 1 IT_PROG 1000
} 0 failed, of 1: SUCCESS
=========================
GROUP Output array: Actual = 1, Expected = 1 {
==============================================
F? Employee id Description
-- ----------- ----------------------------------
1513 ONE THOUSAND FIVE HUNDRED THIRTEEN
} 0 failed, of 1: SUCCESS
=========================
GROUP Exception: Actual = 0, Expected = 0: SUCCESS
==================================================
} 0 failed, of 3: SUCCESS
=========================
SCENARIO 2: 1 invalid job id {
==============================
INPUTS
======
GROUP Employee {
================
Name Email Job Salary
---- ----- ------- ------
LN 2 EM 2 NON_JOB 1500
}
=
OUTPUTS
=======
GROUP Employee: Actual = 0, Expected = 0: SUCCESS
=================================================
GROUP Output array: Actual = 1, Expected = 1 {
==============================================
F? Employee id Description
-- ----------- -------------------------------------------------------------------
0 ORA-02291: integrity constraint (.) violated - parent key not found
} 0 failed, of 1: SUCCESS
=========================
GROUP Exception: Actual = 0, Expected = 0: SUCCESS
==================================================
} 0 failed, of 3: SUCCESS
=========================
SCENARIO 3: 1 invalid number {
==============================
INPUTS
======
GROUP Employee {
================
Name Email Job Salary
---- ----- ------- ------
LN 3 EM 3 IT_PROG 2000x
}
=
OUTPUTS
=======
GROUP Employee: Actual = 0, Expected = 0: SUCCESS
=================================================
GROUP Output array: Actual = 0, Expected = 0: SUCCESS
=====================================================
GROUP Exception: Actual = 1, Expected = 1 {
===========================================
F? Error message
-- -------------------------------------------------------------------------------
ORA-06502: PL/SQL: numeric or value error: character to number conversion error
} 0 failed, of 1: SUCCESS
=========================
} 0 failed, of 3: SUCCESS
=========================
SCENARIO 4: 2 valid records, 1 invalid job id (2 deliberate errors) {
=====================================================================
INPUTS
======
GROUP Employee {
================
Name Email Job Salary
---- ----- ------- ------
LN 4 EM 4 IT_PROG 3000
LN 5 EM 5 NON_JOB 4000
LN 6 EM 6 IT_PROG 5000
}
=
OUTPUTS
=======
GROUP Employee: Actual = 2, Expected = 3 {
==========================================
F? Employee id Name Email Job Salary
-- ----------- ---- ----- ------- ------
F 1515 LN 4 EM 4 IT_PROG 3000
> 1515 LN 4 EM 4 IT_PROG 1000
1517 LN 6 EM 6 IT_PROG 5000
F
> 1517 LN 6 EM 6 IT_PROG 5000
} 2 failed, of 3: FAILURE
=========================
GROUP Output array: Actual = 3, Expected = 3 {
==============================================
F? Employee id Description
-- ----------- -------------------------------------------------------------------
1515 ONE THOUSAND FIVE HUNDRED FIFTEEN
0 ORA-02291: integrity constraint (.) violated - parent key not found
1517 ONE THOUSAND FIVE HUNDRED SEVENTEEN
} 0 failed, of 3: SUCCESS
=========================
GROUP Exception: Actual = 0, Expected = 0: SUCCESS
==================================================
} 2 failed, of 7: FAILURE
=========================
TIMING: Actual = 222, Expected <= 2: FAILURE
============================================
SUMMARY for TT_Emp_WS.tt_AIP_Save_Emps
======================================
Scenario # Failed # Tests Status
------------------------------------------------------- -------- ------- -------
1 valid record 0 3 SUCCESS
1 invalid job id 0 3 SUCCESS
1 invalid number 0 3 SUCCESS
2 valid records, 1 invalid job id (2 deliberate errors) 2 7 FAILURE
Timing 1 1 FAILURE
------------------------------------------------------- -------- ------- -------
Total 3 17 FAILURE
------------------------------------------------------- -------- ------- -------
Timer Set: TT_Emp_WS.tt_AIP_Save_Emps, Constructed at 09 Jul 2016 13:32:40, written at 13:32:42
===============================================================================================
[Timer timed: Elapsed (per call): 0.01 (0.000013), CPU (per call): 0.02 (0.000020), calls: 1000, '***' denotes corrected line below]
Timer Elapsed CPU Calls Ela/Call CPU/Call
------- ---------- ---------- ------------ ------------- -------------
Setup 0.04 0.01 1 0.03700 0.01000
Caller 0.67 0.03 3 0.22200 0.01000
SELECT 0.60 0.00 3 0.19933 0.00000
(Other) 0.41 0.03 1 0.40500 0.03000
------- ---------- ---------- ------------ ------------- -------------
Total 1.71 0.07 8 0.21325 0.00875
------- ---------- ---------- ------------ ------------- -------------
Notes on output
- In the event of the suite failing, as here, the utility code ensures that an Oracle error is generated. This can then be trapped by a calling Unix script from a scheduled Jenkins job to send out emails
Emp_WS.AIP_Save_Emps - Base Procedure
PROCEDURE AIP_Save_Emps (p_emp_in_lis ty_emp_in_arr, -- list of employees to insert
x_emp_out_lis OUT ty_emp_out_arr) IS -- list of employee results
l_emp_out_lis ty_emp_out_arr;
bulk_errors EXCEPTION;
PRAGMA EXCEPTION_INIT (bulk_errors, -24381);
n_err PLS_INTEGER := 0;
BEGIN
FORALL i IN 1..p_emp_in_lis.COUNT
SAVE EXCEPTIONS
INSERT INTO employees (
employee_id,
last_name,
email,
hire_date,
job_id,
salary
) VALUES (
employees_seq.NEXTVAL,
p_emp_in_lis(i).last_name,
p_emp_in_lis(i).email,
SYSDATE,
p_emp_in_lis(i).job_id,
p_emp_in_lis(i).salary
)
RETURNING ty_emp_out_obj (employee_id, To_Char(To_Date(employee_id,'J'),'JSP')) BULK COLLECT INTO x_emp_out_lis;
EXCEPTION
WHEN bulk_errors THEN
l_emp_out_lis := x_emp_out_lis;
FOR i IN 1 .. sql%BULK_EXCEPTIONS.COUNT LOOP
IF i > x_emp_out_lis.COUNT THEN
x_emp_out_lis.Extend;
END IF;
x_emp_out_lis (SQL%Bulk_Exceptions (i).Error_Index) := ty_emp_out_obj (0, SQLERRM (- (SQL%Bulk_Exceptions (i).Error_Code)));
END LOOP;
FOR i IN 1..p_emp_in_lis.COUNT LOOP
IF i > x_emp_out_lis.COUNT THEN
x_emp_out_lis.Extend;
END IF;
IF x_emp_out_lis(i).employee_id = 0 THEN
n_err := n_err + 1;
ELSE
x_emp_out_lis(i) := l_emp_out_lis(i - n_err);
END IF;
END LOOP;
END AIP_Save_Emps;
Notes on base procedure
- There is a FORALL statement to insert a record into employees for each record in the input list in one batch
- The RETURNING clause uses a BULK COLLECT to return the new id and its value in words to the output list
- SAVE EXCEPTIONS means valid records will be inserted, while invalid ones will fall to the EXCEPTION block
- Invalid records cause a zero and the error message to be interpolated into the output array
- I tried to follow a similar principle here to that in Connor McDonald’s article, Assume the Best; Plan for the Worst - Oracle Magazine Article
TT_Emp_WS.tt_AIP_Save_Emps - Testing Package Procedure
Declaration section
PROCEDURE tt_AIP_Save_Emps IS
c_proc_name CONSTANT VARCHAR2(61) := 'TT_Emp_WS.tt_AIP_Save_Emps';
c_ln_prefix CONSTANT VARCHAR2(20) := 'LN ';
c_em_prefix CONSTANT VARCHAR2(20) := 'EM ';
c_ln CONSTANT L1_chr_arr := L1_chr_arr (
c_ln_prefix || '1', c_ln_prefix || '2', c_ln_prefix || '3', c_ln_prefix || '4', c_ln_prefix || '5', c_ln_prefix || '6');
c_em CONSTANT L1_chr_arr := L1_chr_arr (
c_em_prefix || '1', c_em_prefix || '2', c_em_prefix || '3', c_em_prefix || '4', c_em_prefix || '5', c_em_prefix || '6');
c_job_id CONSTANT VARCHAR2(20) := 'IT_PROG';
c_job_id_invalid CONSTANT VARCHAR2(20) := 'NON_JOB';
c_salary CONSTANT L1_chr_arr := L1_chr_arr ('1000', '1500', '2000x', '3000', '4000', '5000');
c_params_3lis CONSTANT L3_chr_arr := L3_chr_arr (
L2_chr_arr (L1_chr_arr (c_ln (1), c_em (1), c_job_id, c_salary (1))), -- valid
L2_chr_arr (L1_chr_arr (c_ln (2), c_em (2), c_job_id_invalid, c_salary (2))), -- invalid
L2_chr_arr (L1_chr_arr (c_ln (3), c_em (3), c_job_id, c_salary (3))), -- invalid salary, nan
L2_chr_arr (L1_chr_arr (c_ln (4), c_em (4), c_job_id, c_salary (4)), -- valid
L1_chr_arr (c_ln (5), c_em (5), c_job_id_invalid, c_salary (5)), -- invalid job id
L1_chr_arr (c_ln (6), c_em (6), c_job_id, c_salary (6))) -- valid
);
g_exp_3lis L3_chr_arr;
c_ws_ms_limit CONSTANT PLS_INTEGER := 2;
c_scenario_lis CONSTANT L1_chr_arr := L1_chr_arr (
'1 valid record',
'1 invalid job id',
'1 invalid number',
'2 valid records, 1 invalid job id (2 deliberate errors)'
);
c_inp_group_lis CONSTANT L1_chr_arr := L1_chr_arr ('Employee');
c_inp_field_2lis CONSTANT L2_chr_arr := L2_chr_arr (
L1_chr_arr (
'Name',
'Email',
'Job',
'*Salary')
);
c_out_group_lis CONSTANT L1_chr_arr := L1_chr_arr ('Employee', 'Output array', 'Exception');
c_out_field_2lis CONSTANT L2_chr_arr := L2_chr_arr (
L1_chr_arr ('*Employee id', 'Name', 'Email', 'Job', '*Salary'),
L1_chr_arr ('*Employee id', 'Description'),
L1_chr_arr ('Error message')
);
l_timer_set PLS_INTEGER;
l_inp_3lis L3_chr_arr := L3_chr_arr();
l_act_3lis L3_chr_arr := L3_chr_arr();
Notes on declaration section
- Observe that the declarations of l_inp_3lis and g_exp_3lis as 3-level generic lists map directly to Scenario Inputs and Scenario Outputs in the array structure diagram above
- c_scenario_lis, as a generic list maps directly to Scenario Descriptions
- Adding or subtracting fields in the input object means simply adding or subtracting fields in the inner level of the list
- Adding test scenarios (i.e. calls) amounts to adding outer level records in each list
- Using the program as a template for other unit test programs is therefore very easy
- All inputs and outputs are printed in the output, making the testing self-documenting
Setup
PROCEDURE Setup_Array IS
l_last_seq_val PLS_INTEGER;
BEGIN
SELECT employees_seq.NEXTVAL
INTO l_last_seq_val
FROM DUAL;
g_exp_3lis := L3_chr_arr ( -- each call results in a list of 2 output lists: first is the table records; second is the out array
L2_chr_arr (L1_chr_arr (Utils.List_Delim (To_Char(l_last_seq_val+1), c_ln (1), c_em (1), c_job_id, c_salary (1))), -- valid char, num pair
L1_chr_arr (Utils.List_Delim (To_Char(l_last_seq_val+1), To_Char(To_Date(l_last_seq_val+1,'J'),'JSP'))),
Utils_TT.c_empty_list
),
L2_chr_arr (Utils_TT.c_empty_list,
L1_chr_arr (Utils.List_Delim (0, 'ORA-02291: integrity constraint (.) violated - parent key not found')),
Utils_TT.c_empty_list
),
L2_chr_arr (Utils_TT.c_empty_list,
Utils_TT.c_empty_list,
L1_chr_arr ('ORA-06502: PL/SQL: numeric or value error: character to number conversion error')
),
L2_chr_arr (L1_chr_arr (Utils.List_Delim (To_Char(l_last_seq_val+3), c_ln (4), c_em (4), c_job_id, c_salary (1)), -- c_salary (1) should be c_salary (4)
Utils.List_Delim (To_Char(l_last_seq_val+5), c_ln (6), c_em (6), c_job_id, c_salary (6)),
Utils.List_Delim (To_Char(l_last_seq_val+5), c_ln (6), c_em (6), c_job_id, c_salary (6))), -- duplicate record to generate error
L1_chr_arr (Utils.List_Delim (To_Char(l_last_seq_val+3), To_Char(To_Date(l_last_seq_val+3,'J'),'JSP')),
Utils.List_Delim (0, 'ORA-02291: integrity constraint (.) violated - parent key not found'),
Utils.List_Delim (To_Char(l_last_seq_val+5), To_Char(To_Date(l_last_seq_val+5,'J'),'JSP'))),
Utils_TT.c_empty_list
)
);
l_act_3lis.EXTEND (c_params_3lis.COUNT);
l_inp_3lis.EXTEND (c_params_3lis.COUNT);
FOR i IN 1..c_params_3lis.COUNT LOOP
l_inp_3lis(i) := L2_chr_arr();
l_inp_3lis(i).EXTEND(1);
l_inp_3lis(i)(1) := L1_chr_arr();
l_inp_3lis(i)(1).EXTEND(c_params_3lis(i).COUNT);
FOR j IN 1..c_params_3lis(i).COUNT LOOP
l_inp_3lis(i)(1)(j) := Utils.List_Delim (c_params_3lis(i)(j)(1), c_params_3lis(i)(j)(2), c_params_3lis(i)(j)(3), c_params_3lis(i)(j)(4));
END LOOP;
END LOOP;
END Setup_Array;
Notes on Setup
- Setup gets a value from the sequence in order to determine what values are expected in the outputs
- Any concurrent calls could invalidate this expectation, but scheduling the test runs may avoid this; if not, one could change the expectation to a category, of say positive integer in a certain range
- The example has two output groups, corresponding to a table and an output array
- Observe how easy it would be to extend to extra tables or arrays, just by adding records in the middle level of the list
- c_empty_list is a 1-record list containing a string ‘EMPTY’, which is used to simplify assertion of empty lists
- Setup in this case has no need to create test data, as we have chosen to reference pre-existing departments
- There is no teardown as the inserts from the procedure call are rolled back after each call
- The call to Write_Times writes out the report from the package level timer set, including setup timings (if any)
‘Pure’ API wrapper procedure
PROCEDURE Purely_Wrap_API (p_inp_2lis L2_chr_arr, -- input list of lists (record, field)
x_act_2lis OUT L2_chr_arr) IS -- output list of lists (group, record)
l_emp_out_lis emp_out_arr;
l_tab_lis L1_chr_arr;
l_arr_lis L1_chr_arr;
l_err_lis L1_chr_arr;
-- Do_Save makes the ws call and returns o/p array
PROCEDURE Do_Save (x_emp_out_lis OUT emp_out_arr) IS
l_emp_in_lis emp_in_arr := emp_in_arr();
BEGIN
FOR i IN 1..p_inp_2lis.COUNT LOOP
l_emp_in_lis.EXTEND;
l_emp_in_lis (l_emp_in_lis.COUNT) := emp_in_rec (p_inp_2lis(i)(1), p_inp_2lis(i)(2), p_inp_2lis(i)(3), p_inp_2lis(i)(4));
END LOOP;
Timer_Set.Init_Time (p_timer_set_ind => l_timer_set);
Emp_WS.AIP_Save_Emps (
p_emp_in_lis => l_emp_in_lis,
x_emp_out_lis => x_emp_out_lis);
Timer_Set.Increment_Time (p_timer_set_ind => l_timer_set, p_timer_name => Utils_TT.c_call_timer);
END Do_Save;
-- Get_Tab_Lis: gets the database records inserted into a generic list of strings
PROCEDURE Get_Tab_Lis (x_tab_lis OUT L1_chr_arr) IS
BEGIN
SELECT Utils.List_Delim (employee_id, last_name, email, job_id, salary)
BULK COLLECT INTO x_tab_lis
FROM employees
WHERE ttid = Utils.c_session_id_if_TT
ORDER BY employee_id;
Timer_Set.Increment_Time (p_timer_set_ind => l_timer_set, p_timer_name => 'SELECT');
EXCEPTION
WHEN NO_DATA_FOUND THEN NULL;
END Get_Tab_Lis;
-- Get_Arr_Lis converts the ws output array into a generic list of strings
PROCEDURE Get_Arr_Lis (p_emp_out_lis emp_out_arr, x_arr_lis OUT L1_chr_arr) IS
BEGIN
IF p_emp_out_lis IS NOT NULL THEN
x_arr_lis := L1_chr_arr();
x_arr_lis.EXTEND (p_emp_out_lis.COUNT);
FOR i IN 1..p_emp_out_lis.COUNT LOOP
x_arr_lis (i) := Utils.List_Delim (p_emp_out_lis(i).employee_id, p_emp_out_lis(i).description);
END LOOP;
END IF;
END Get_Arr_Lis;
BEGIN
BEGIN
Do_Save (x_emp_out_lis => l_emp_out_lis);
Get_Tab_Lis (x_tab_lis => l_tab_lis);
Get_Arr_Lis (p_emp_out_lis => l_emp_out_lis, x_arr_lis => l_arr_lis);
EXCEPTION
WHEN OTHERS THEN
l_err_lis := L1_chr_arr (SQLERRM);
END;
x_act_2lis := L2_chr_arr (Utils_TT.List_or_Empty (l_tab_lis), Utils_TT.List_or_Empty (l_arr_lis), Utils_TT.List_or_Empty (l_err_lis));
ROLLBACK;
END Purely_Wrap_API;
Notes on main testing procedure
- The call converts the generic input data into the objects required by the base procedure, then calls the procedure and sets the resulting records for each output group
- Purely_Wrap_API has a very simple main section that calls local procedures to split the logic into three sections
- Its EXCEPTION clause captures the scenario where an invalid type conversion is attempted
- Its output is a generic 2-level list that is mapped to a record in the outer-level output list
- Empty lists are converted to c_empty_list, the 1-record list mentioned earlier
- The procedure ends with a rollback
Main section
BEGIN
--
-- Every testing main section should be similar to this, with array setup, then loop over scenarios
-- making a 'pure'(-ish) call to specific, local Purely_Wrap_API, with single assertion call outside
-- the loop
--
l_timer_set := Utils_TT.Init (c_proc_name);
Setup_Array;
Timer_Set.Increment_Time (l_timer_set, 'Setup_Array');
FOR i IN 1..c_params_3lis.COUNT LOOP
Purely_Wrap_API (c_params_3lis(i), l_act_3lis(i));
END LOOP;
Utils_TT.Is_Deeply (c_proc_name, c_scenario_lis, l_inp_3lis, l_act_3lis, g_exp_3lis, l_timer_set, c_ws_ms_limit,
c_inp_group_lis, c_inp_field_2lis, c_out_group_lis, c_out_field_2lis);
EXCEPTION
WHEN OTHERS THEN
Utils.Write_Other_Error;
RAISE;
END tt_AIP_Save_Emps;
Notes on main section
- The main section is very simple: a local procedure Purely_Wrap_API is called for each input scenario
- The call converts the generic input data into the objects required by the base procedure, then calls the procedure and sets the resulting records for each output group
- Is_Deeply is a generic utility procedure that does all the assertions and calls the results reporting utility
- This can be used without change for any number of output groups with any numbers of fields, of any types
2025 Note: In the latest version of the unit testing framework, Trapit - Oracle PL/SQL Unit Testing Module, the main section is in a library module.
Utils_TT - API Test Utilities Package
We will include only one procedure from this package in the body of the article. See gitHub link for the full code.
2025 Note: In the latest version of the unit testing framework, Trapit - Oracle PL/SQL Unit Testing Module, the example code is not present, but may be found in the git history.
Is_Deeply - to check results from testing
PROCEDURE Is_Deeply (p_proc_name VARCHAR2, -- calling procedure
p_test_lis L1_chr_arr, -- test descriptions
p_inp_3lis L3_chr_arr, -- actual result strings
p_act_3lis L3_chr_arr, -- actual result strings
p_exp_3lis L3_chr_arr, -- expected result strings
p_timer_set PLS_INTEGER, -- timer set index
p_ms_limit PLS_INTEGER, -- call time limit in ms
p_inp_group_lis L1_chr_arr, -- input group names
p_inp_fields_2lis L2_chr_arr, -- input fields descriptions
p_out_group_lis L1_chr_arr, -- output group names
p_fields_2lis L2_chr_arr) IS -- test fields descriptions
l_num_fails_sce L1_num_arr := L1_num_arr();
l_num_tests_sce L1_num_arr := L1_num_arr();
l_tot_fails PLS_INTEGER := 0;
l_tot_tests PLS_INTEGER := 0;
.
.
.
(private procedures - see gitHub project, https://github.com/BrenPatF/trapit_oracle_tester, for full code listings)
.
.
.
BEGIN
Detail_Section (l_num_fails_sce, l_num_tests_sce);
Summary_Section (l_num_fails_sce, l_num_tests_sce, l_tot_fails, l_tot_tests);
Set_Global_Summary (l_tot_fails, l_tot_tests + 1);
END Is_Deeply;
Notes on Is_Deeply
- This is the base version of Is_Deeply with 3-level arrays of expected and actuals
- An inner loop asserts actual values (which are records) against expected
- The final assertion is against average call time
- It is expected that all assertion within a test procedure will be via a single call to one of the versions of this procedure, making a big reduction in code compared with traditional unit testing approaches
- After final assertion a call is made to write out all the results, by scenario, with all inputs printed first, followed by actuals (and expected, where they differ); this means that the test outputs now become precise and accurate documents of what the program does
Package Usages Diagram
- The code timing package was originally written in 2010, and is described here: Code Timing and Object Orientation and Zombies, although in an older version without the dependence on the newer Utils package
2025 Note: The latest version of the code timing package is here, Oracle PL/SQL Code Timing Module.

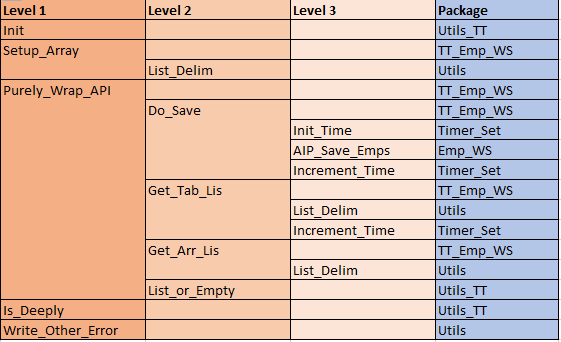

Call Structure Table - TT_Emp_WS.tt_AIP_Save_Emps
